Cinema managers and integrators looking to maximize their power investment and future-proof their systems will be thrilled with the Crown Audio DSi-Series SA4-D, a 350W 4-channel power amplifier that's designed for JBL cinema loudspeakers offering outstanding quality and performance in a rack-mountable enclosure.
The amplifier features a remarkable 96 kHz/32-bit digital signal processing with delay, 8-band parametric EQ, crossovers, FIR processing, LevelMAX limiting, and more. The integrated DriveCore technology incorporates hundreds of amplifier components into a single chip for superior efficiency and reliability. With its updated design, the SA4-D allows for high power output at 2 ohms, enabling up to four surround speakers to be powered by a single channel. There are built-in cinema speaker tuning presets that match all JBL cinema loudspeakers for optimal performance, protection, and easy deployment.

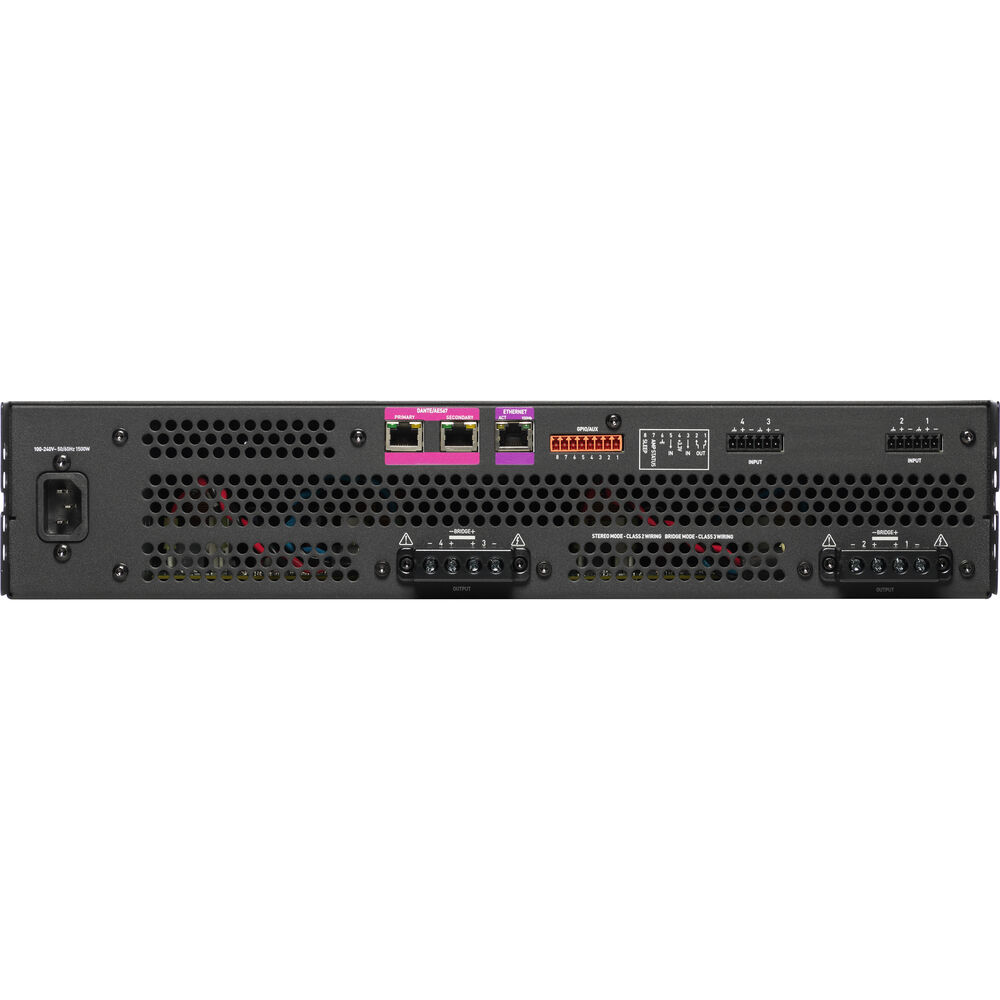

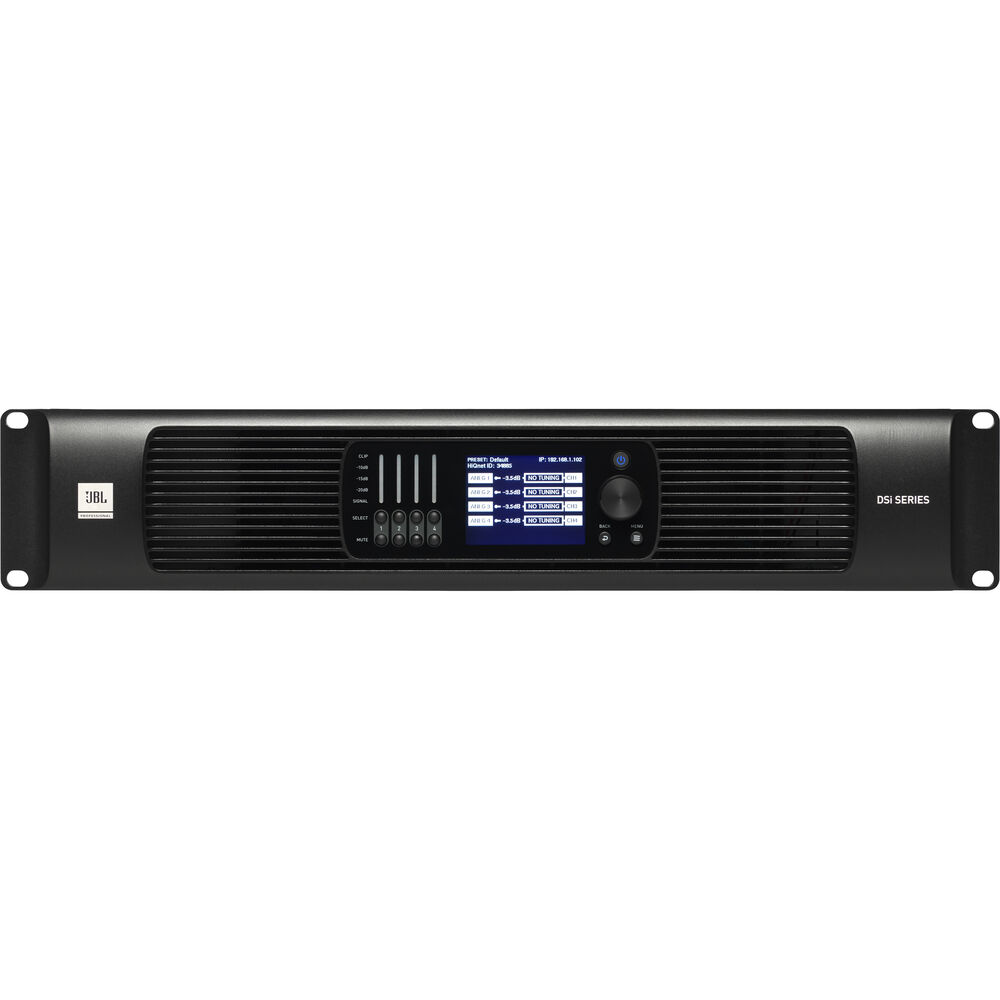

The font panel features an LCD and encoder to configure amplifier settings and mute channels at the touch of a button. The rear panel provides four analog inputs via two Euroblock connectors and two terminal strip speaker outputs to connect up to four speakers. A HiQnet (RJ45) port allows the amplifier to connect with HARMON Audio Architect control software over a standard TCP/IP network. A GPIO/AUX port allows you to externally recall presets, mute channels, monitor amplifier health and power the amplifier on or off. The LA4-D includes DANTE/AES67 support for seamless integration with Dolby Atomos Connect and other interfaces.
At a Glance
96 kHz/32-bit floating-point processing with FIR filtering, LevelMAX limiting, 8-channel parametric EQ, delay, and more, eliminating the need for an external speaker processor
SA4-D, MA4-D, and LA4-D models include Dante/AES67 support for seamless integration with Dolby Atmos Connect and other interfaces
Crown DriveCore technology replaces hundreds of amplifier parts with a single chip, for superior efficiency and reliability
Four channels with bridgeable outputs to easily power JBL’s entire range of cinema speakers
New amplifier design allows for high power output at 2 ohms, enabling up to 4 surround speakers to be powered by a single channel
Built-in JBL cinema speaker tuning presets match all JBL cinema loudspeakers for optimal performance, loudspeaker protection, and accelerated deployment
SNMP to interface with third-party Theater Management Systems (TMS) and cinema control (NOC) systems
HiQnet port to interface with HARMAN Audio Architect control software over a standard TCP/IP network
Externally recall presets, mute channels, monitor amplifier health and power on and off through a combined GPIO/AUX port

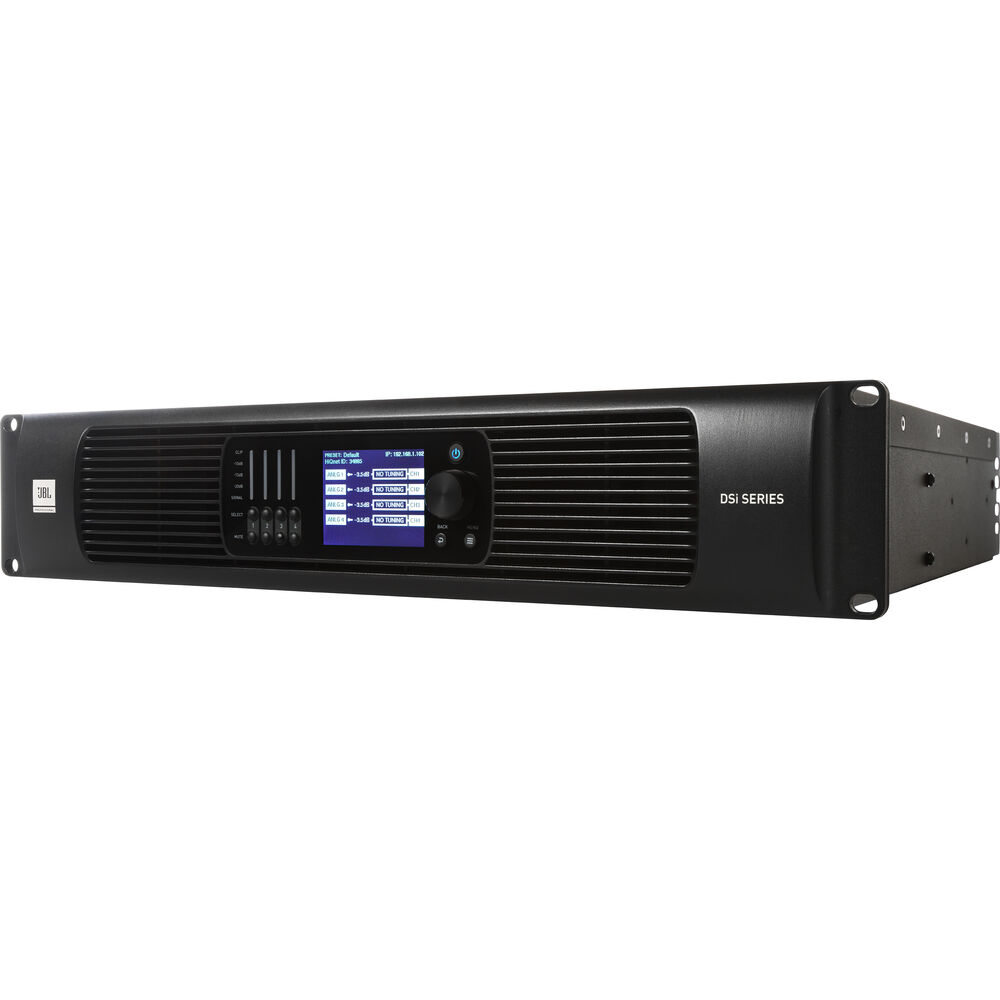

Intuitive front-panel LCD and encoder to configure amplifier settings and mute channels at the push of a button
Ultra-Quiet operation: 51 dBA maximum fan noise
Standard 19" 2 RU chassis
International power supply
Remarkable DSP
DSi 2.0 amplifiers feature best-in-class, 96 kHz/32-bit floating point internal processing with delay (up to 1000 ms), 8-band parametric EQ, crossover, FIR processing, LevelMAX limiting, and more, eliminating the need for an external processor.
High Power Density
Crown's patented DriveCore technology seamlessly integrates the amplifier drive stage into the power output stage, fusing everything into one powerful chip to deliver greater efficiency, reliability, and performance. Using DriveCore, DSi 2.0 amps deliver greater power density than traditional designs, offering 4 channels of amplification with bridgeable outputs in a single 2 RU footprint. Using high-output 2-ohm mode allows powering of up to 4 surround speakers from a single channel.
JBL Speaker Tunings
Built-in JBL cinema speaker tuning presets manage voltage and frequencies delivered to transducers, maximizing system efficiency, and optimizing audio signal quality while preventing equipment damage and accelerating deployment.
Remote Monitoring and Management
SNMP connectivity for interfacing with third-party theater management systems and Cinema Control (NOC) systems for remote status and fault monitoring. A HiQnet port provides access to HARMAN's Audio Architect software, for controlling, configuring, and monitoring amplifier operation through a standard TCP/IP network. A combined GPIO/AUX port can be used to externally recall presets, mute channels, monitor amplifier health, and power the amplifier on and off.
Audio Networking
AES67 connectivity allows networked audio distribution from any Dante/AES67-compatible device and direct interfacing with Dolby Atmos Connect interfaces. Dual network audio ports support primary and secondary networks configured as switched (daisy chain) or redundant (star) systems.
